OGI MARKER

Compact Laser Marking System

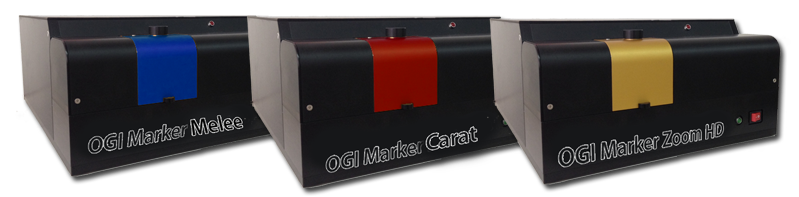

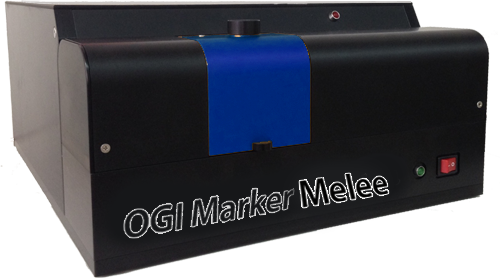

OGIMarker Melee is a cost effective rough planning and laser marking system designed for the special smallest rough stones measuring from 1- 33 points. OGIMArker Melee has special automatic rough software function the able to scan, 3D modelling, planning and laser marking all in less than 30 seconds.

Specially designed laser system for the scanning and marking of the melee stones

Special features of planning and laser marking up to 90 stones an hour.

Accurately plans and marks stones between 1 to 4.50 mm (∼ 1 to 33 points)

TECHNICAL SPECIFICATIONS
  • 1 Lens: 1-4.5mm (upto 33 points)
  • WEIGHT: 14.5kg
  • VOLTAGE: 12 volt 110-220
  • AUTO SWITCHING
  • Dimensions: W:330xL:375xH:150mm
  • 1 YEAR WARRANTY

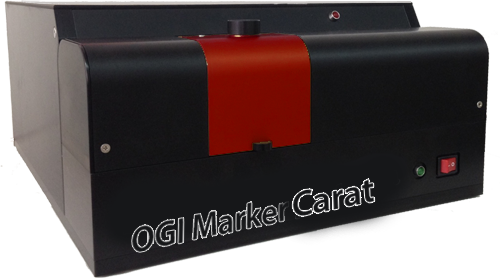

    • OGIMarker Carat is a cost effective rough planning and laser marking system designed for the majority rough stones carat measuring from 0.10- 1.2 carat. OGIMArker Carat has special automatic rough software function the able to scan, 3D modelling, planning and laser marking all in less than 60 seconds.

    Specially designed laser system for the scanning and marking upto 1.2 carat stones

    Accurately plans and marks stones between 3 to 7 mm (upto 1.2 carat∼ )

    TECHNICAL SPECIFICATIONS
  • 1 Lens: 3-7mm (upto 1.2 carat)
  • WEIGHT: 14.5kg
  • VOLTAGE: 12 volt 110-220
  • AUTO SWITCHING
  • Dimensions: W:330xL:375xH:150mm
  • 1 YEAR WARRANTY

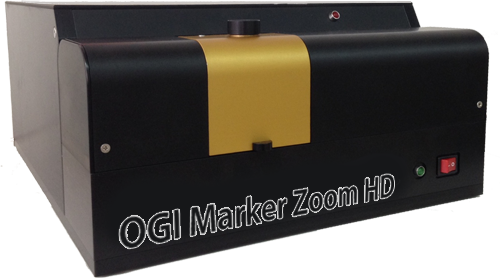

    • OGIMarker Zoom HD is a cost effective rough planning and laser marking system designed for any stone size. OGIMArker Zoom has special automatic rough software function the able to scan, 3D modelling, planning and laser marking all in less than 60 seconds.

    Customizable designed laser system for the scanning and marking of the customer's rough size.

    TECHNICAL SPECIFICATIONS
  • 1 Lens Choose Lens Size
  • WEIGHT: 14.5kg
  • VOLTAGE: 12 volt 110-220
  • AUTO SWITCHING
  • Dimensions: W:330xL:375xH:150mm
  • 1 YEAR WARRANTY





    • Clearer & Sharper than Ever



    Back to Top

    HIGHLIGHTS

    Laser Marking
    Most accurate marking laser line for all facets, including table, upper and lower girdle, crown and pavilion facets and all tops.
    HD Colored Camera
    HD digital camera for accurate mapping of the rough surface and identification of the smallest inclusions.
    Pique Functions
    Revolutionary inclusion feature enables calculating positions and grading clarity as viewed by the user.
    Best Value
    Advanced algorithms automatically analyses different cut grades, shapes, clarity grades and inclusion positions for maximum profit.
    Multi-Cut
    Allocates and calculates unlimited cutting options in round and fancy shapes for the highest possible yield.

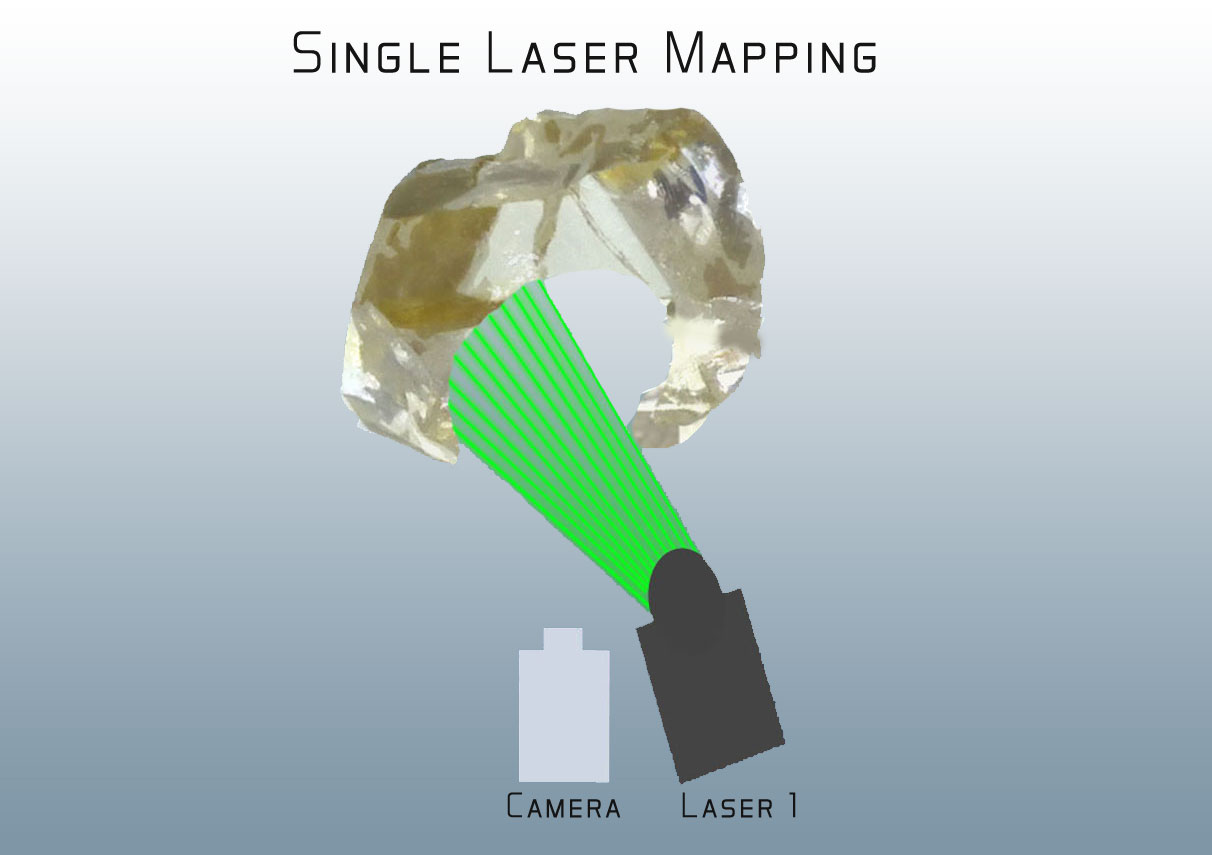

    Laser Scanner
    Precise laser scanner for optimal mapping of holes and grooves.
    Rough Price
    Automatically calculates the rough price according to Rapaport list.
    GIA® Facetware™
    Rough planning software assists in achieving the optimal cut-grade with accordance to GIA® lab's standards.
    Back to Top

    SOFTWARE

    GIA® Facetware™ Rough

    Supports GIA Facetware™ - receive an estimated cut grade before sending the diamonds to GIA LAB for grading service.

    Multi-Cut

    Allocates and calculates unlimited cutting options in round and fancy shapes for the highest possible yield.

    Laser Scanner

    Precise laser scanner for optimal mapping of holes and grooves.

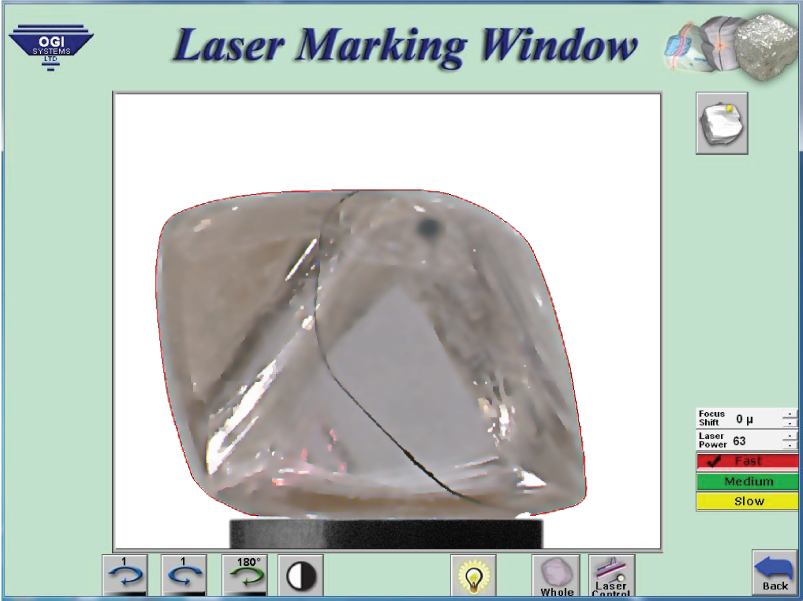

    Laser Marking

    Extremely visible and accurate marking of all facets with automatic control of laser line.

    Pique Functions

    Revolutionary inclusion feature enables calculating positions and grading clarity as viewed by the user.

    Best Pair
