OVERVIEW

Scanox Proportion

High Resolution Diamond Grading

Advanced system based on HD digital camera and high speed measurement capacity.
This machine is designed for superior and accurate evaluation of a diamond's proportion, symmetry and extra facets according to labs around the world.











HIGHLIGHTS

FireTrace
Predicts light performance of the polished diamond.
GIA® Facetware™
Receive an estimated GIA cut grade before sending the diamonds to GIA LAB for grading service.
HD Camera
For superior accuracy and repeatability of the measurements.
Lab
Measure and grade diamonds based on the standards of major labs.
SymCut
Automatically identifies and grade the symmetrical and asymmetrical features in a diamond.
Smart Recut
Allows manual or automatic re-cutting for improving the diamond's cut grade.
Hearts & Arrows
Measure, grade and repair Hearts & Arrows diamonds.
Online
Promote your diamonds with complete facets' info and images of their light reflection.
Reports
Display full facet information such as: weight, diameter, depth, crown angle and height, pavilion angle and height, culet and more.
Certificates
Produce your own certificates showing an assessment of the 4Cs parameters.









SOFTWARE

GIA® FACETWARE™

Supports GIA Facetware™ - receive an estimated cut grade before sending the diamonds to GIA LAB for grading service.

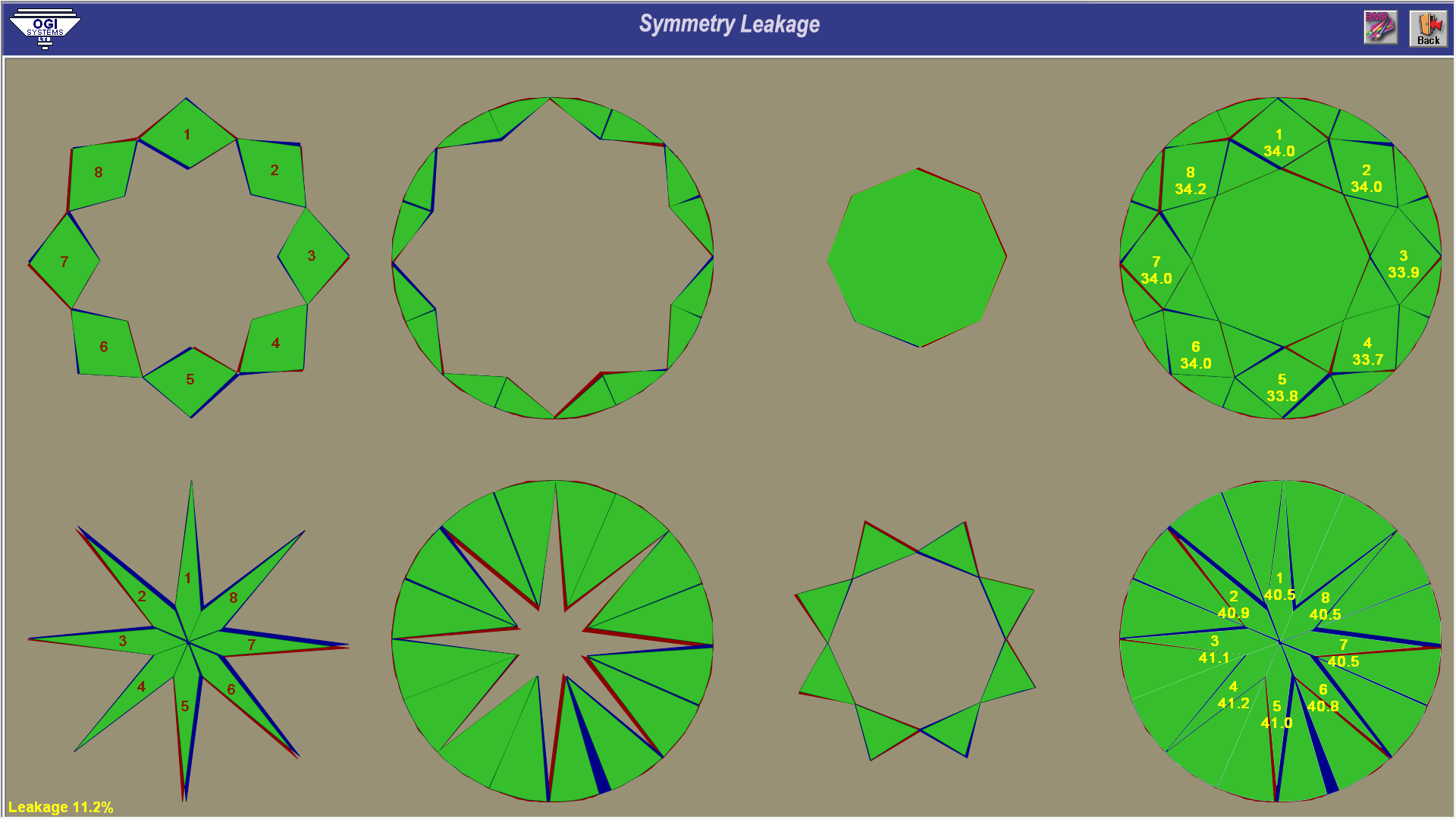

SYMCUT

Support SymCut- automatically identifies and grades the symmetrical and asymmetrical features in a diamond.

FIRETRACE™

Support FireTrace - evaluates the light performance of the polished diamond and determines how much "life" it has based on the proportions of the stone.

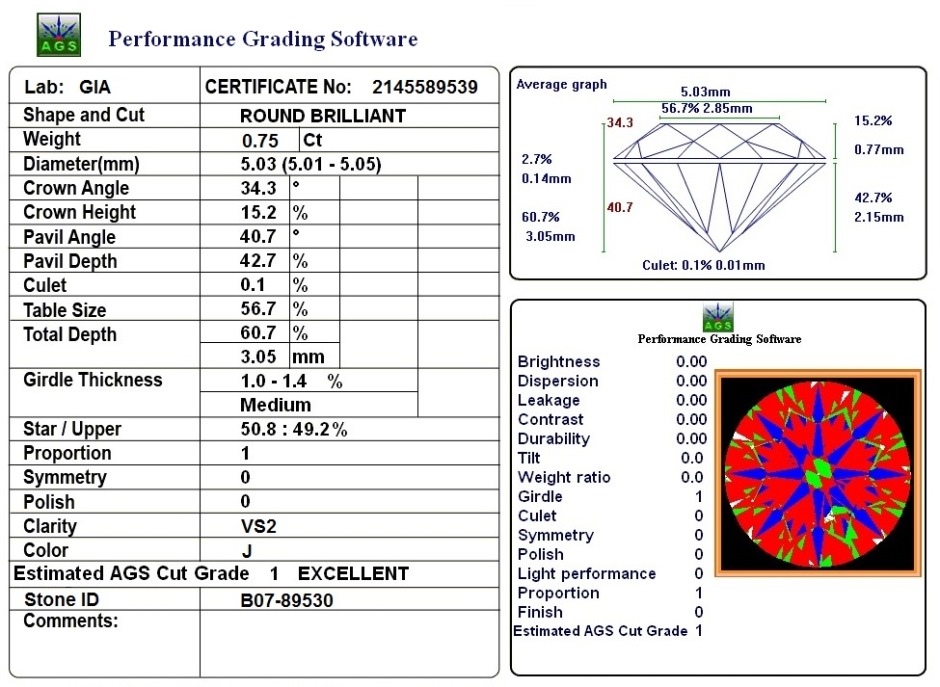

AGS

AGS™ Software embedded in OGI's CutGrade, this software enables easy estimating and re-cutting of any diamond with accordance to the AGS standard.

Hearts & Arrows

With the Hearts & Arrows Software you can grade and perfect your Hearts & Arrows diamonds.

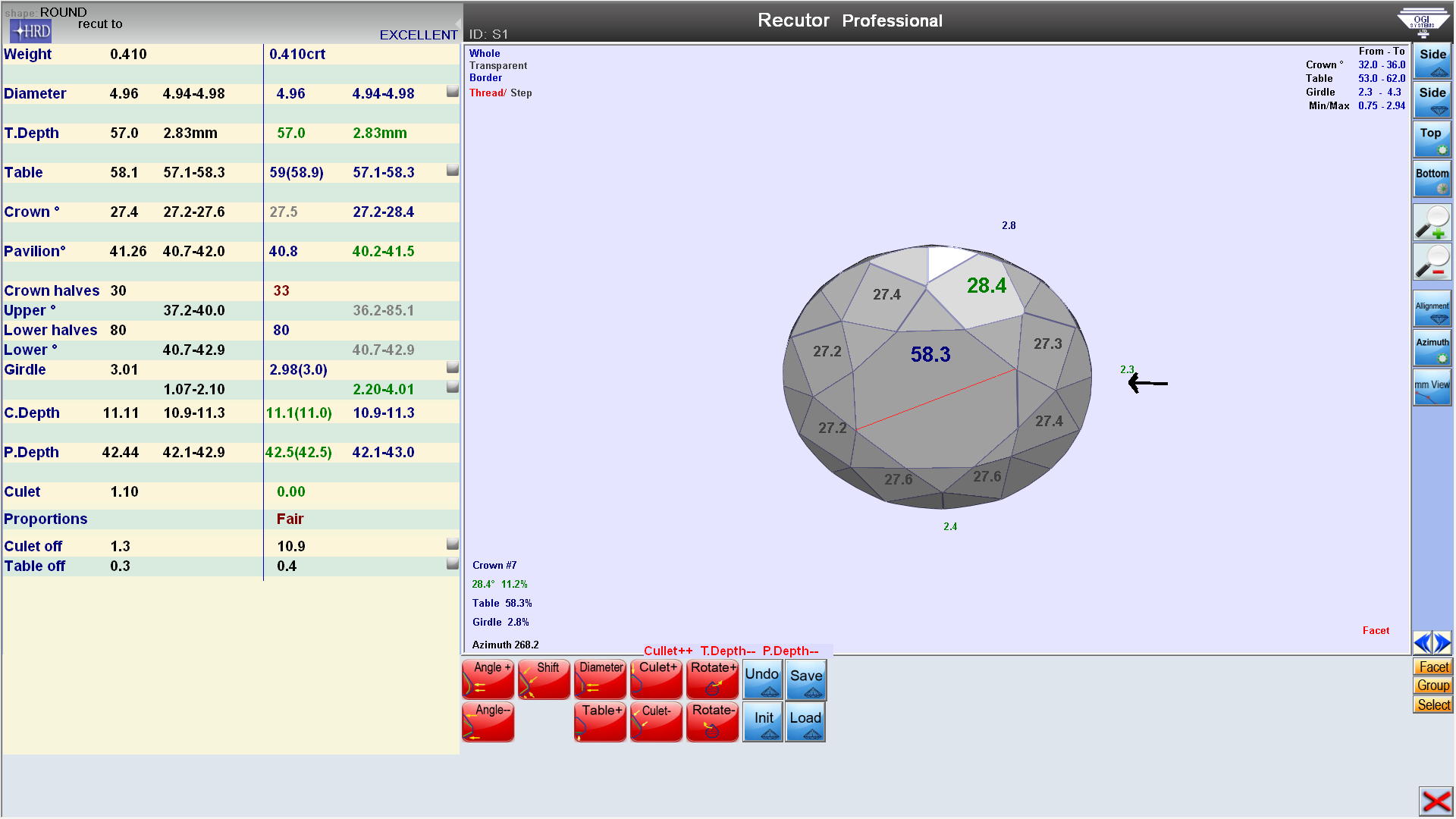

SMART RECUT

Supports Smart Recut - allows manual or automatic Re-cutting for improving the diamond's cut grade.

CERTIFICATE PLOTTING

Manually add gemological symbols on your polished diamond's certificate.

MATCHING STONES

"Find and search option"- finds matching stones in your archive.

*GIA® Facetware™ Software available for purchase separately.










MY PROPORTION

TECH SPEC

  • MULTI-LENSES: 3 Choose Lens Size & View Our Recommendation
  • ACCURACY: Linear 0.01mm, angular 0.1 *Need to be free from dust
  • WEIGHT: 7kg
  • VOLTAGE: 12 volt 110-220
  • AUTO SWITCHING
  • MEASURING SIZE: a choice of lenses suitable for different diamond sizes,
    ranging up to 100 carats
  • DIMENSIONS: W: 104mm x L: 420mm x H: 125mm

  • RELATED PRODUCTS:
