OVERVIEW

Scanox Tender

Portable Rough Planning

i20, i40, i100, i200, i300, i500

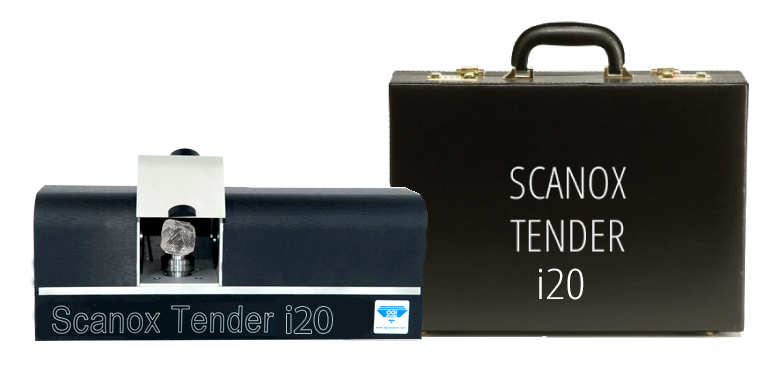

Tender i20

Up to 20 Carats

  • Fixed Lens
  • WEIGHT: 1.1kg
  • VOLTAGE: 12 volt 110-220
  • AUTO SWITCHING
  • MEASURING SIZE: Up to 20 Carats
  • Dimensions: W:290xL:90xH:110mm

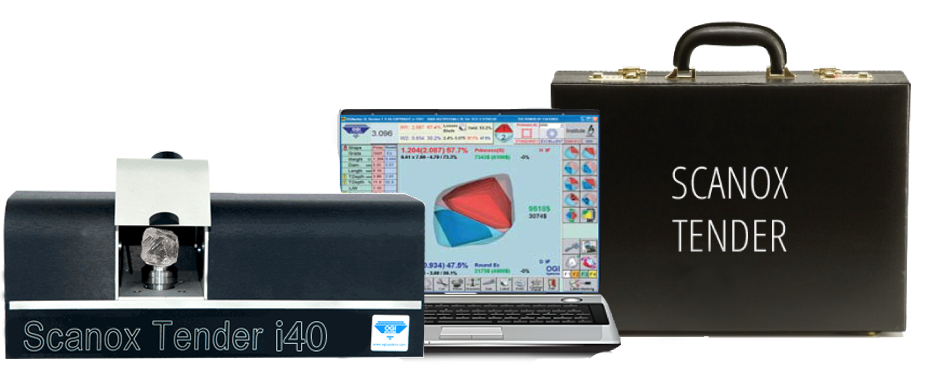

Tender i40

Up to 40 Carats

  • Fixed Lens
  • WEIGHT: 1.1kg
  • VOLTAGE: 12 volt 110-220
  • AUTO SWITCHING
  • MEASURING SIZE: Up to 40 Carats or maximum horizontal 22mm
  • Dimensions: W:290xL:90xH:110mm

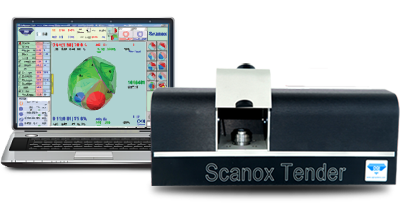

Tender i100

Up to 100 Carats

  • Fixed Lens
  • WEIGHT: 1.1kg
  • VOLTAGE: 12 volt 110-220
  • AUTO SWITCHING
  • MEASURING SIZE: Up to 100 Carats or maximum horizontal 28mm
  • Dimensions: W:290xL:90xH:110mm

Tender i200

Up to 200 Carats

  • Fixed Lens
  • WEIGHT: 1.3kg
  • VOLTAGE: 12 volt 110-220
  • AUTO SWITCHING
  • MEASURING SIZE: Up to 200 Carats or maximum horizontal 34mm
  • Dimensions: W:90mm x L:305mm x H:110mm

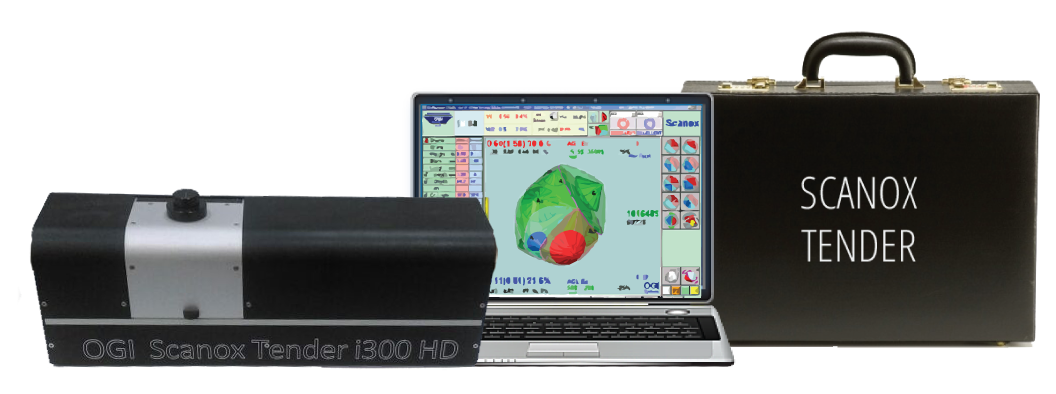

Tender i300

Up to 300 Carats

  • Fixed Lens
  • WEIGHT: 1.3kg
  • VOLTAGE: 12 volt 110-220
  • AUTO SWITCHING
  • MEASURING SIZE: Up to 300 Carats or maximum horizontal 43mm
  • Dimensions: W:90mm x L:305mm x H:110mm

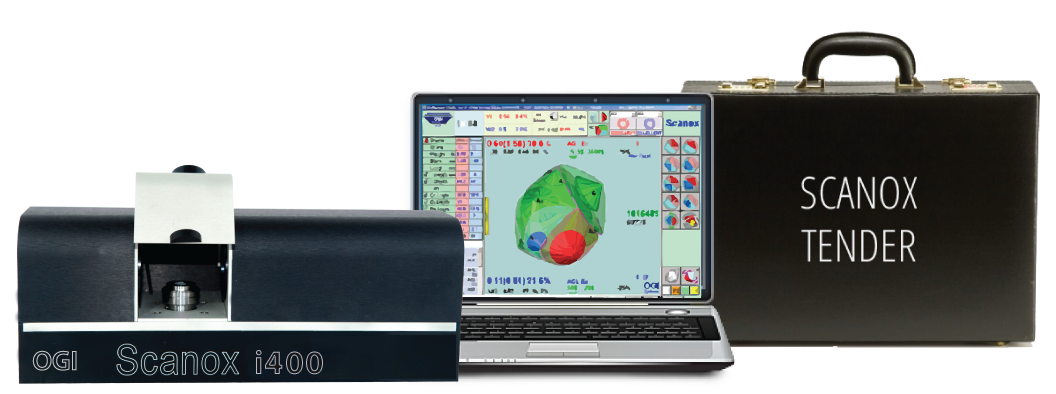

Tender i400

Up to 400 Carats

*All rights to the photo belong to Lucara

  • Fixed Lens
  • WEIGHT: 1.3kg
  • VOLTAGE: 12 volt 110-220
  • AUTO SWITCHING
  • MEASURING SIZE: Up to 400 Carats
  • Dimensions: W:90mm x L:305mm x H:110mm

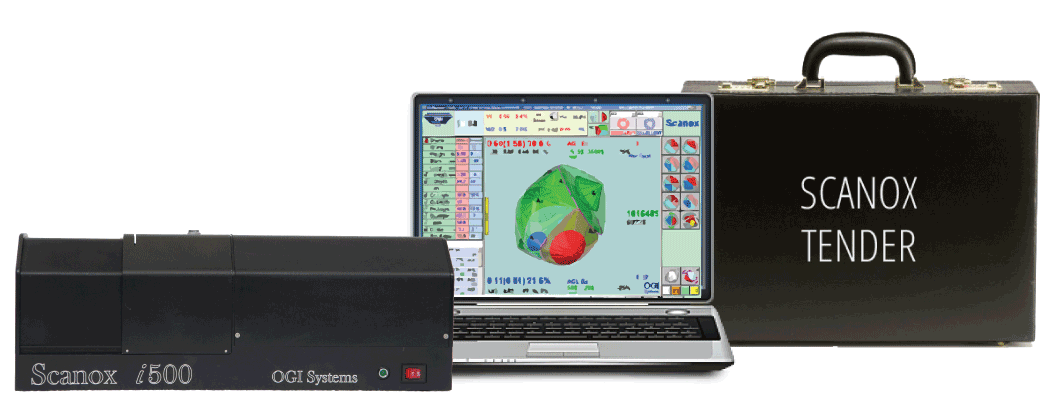

Tender i500

Up to 500 Carats

  • Fixed Lens
  • WEIGHT: 5kg
  • VOLTAGE: 12 volt 110-220
  • AUTO SWITCHING
  • MEASURING SIZE: Up to 500 Carats or maximum horizontal 55 mm
  • Dimensions: W:90 x L:440 x H:155mm

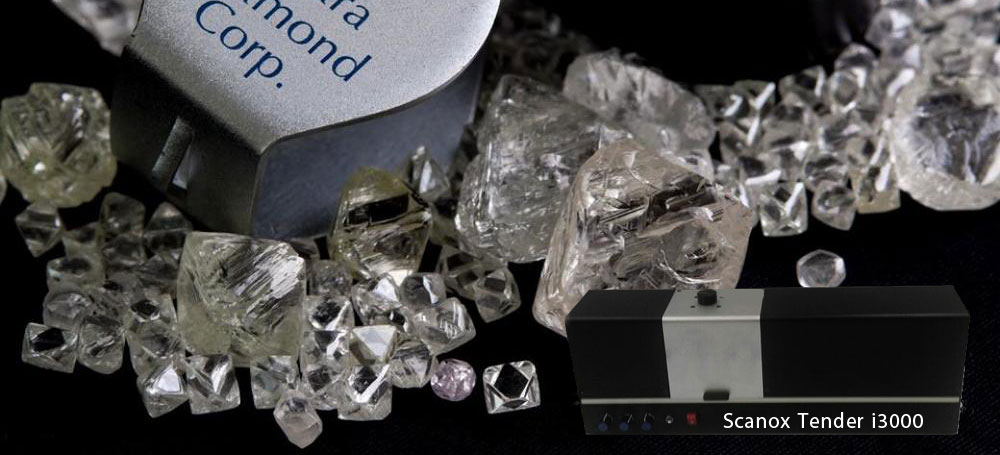

Tender i3000

Up to 3000 Carats

*All rights to the photo belong to Lucara

  • Fixed Lens
  • WEIGHT:
  • VOLTAGE:
  • AUTO SWITCHING
  • MEASURING SIZE: Up to 3000 Carats or maximum horizontal 110mm
  • Dimensions:
    		•


    What you need to have in a tender to buy rough diamond.

    A Diacolor - colorimeter device, a DiaFlurocent - fluorescence testing device, and a Scanox Tender - measuring device for analyzing the rough so you know what the most profitable polish stone you can get.

    The Scanox Tender HD is world's first portable system for measuring and planning rough diamond in high-resolution and high speed Calculation technology.
    This system comes in light weight and laptop connect ability and can measure up to 1000 carats. With this system combine with Diacolor you can be more confident in making the right decision during diamond tenders and finding the optimal models for your rough stones.


    Quality Results:

    Pique Gletz Deep Gletz Polaris


    The Optimal Solution for Rough Tender

    A Combination of DiaColor & Scanox Tender

    Using Scanox Tender

    Tension Viewer

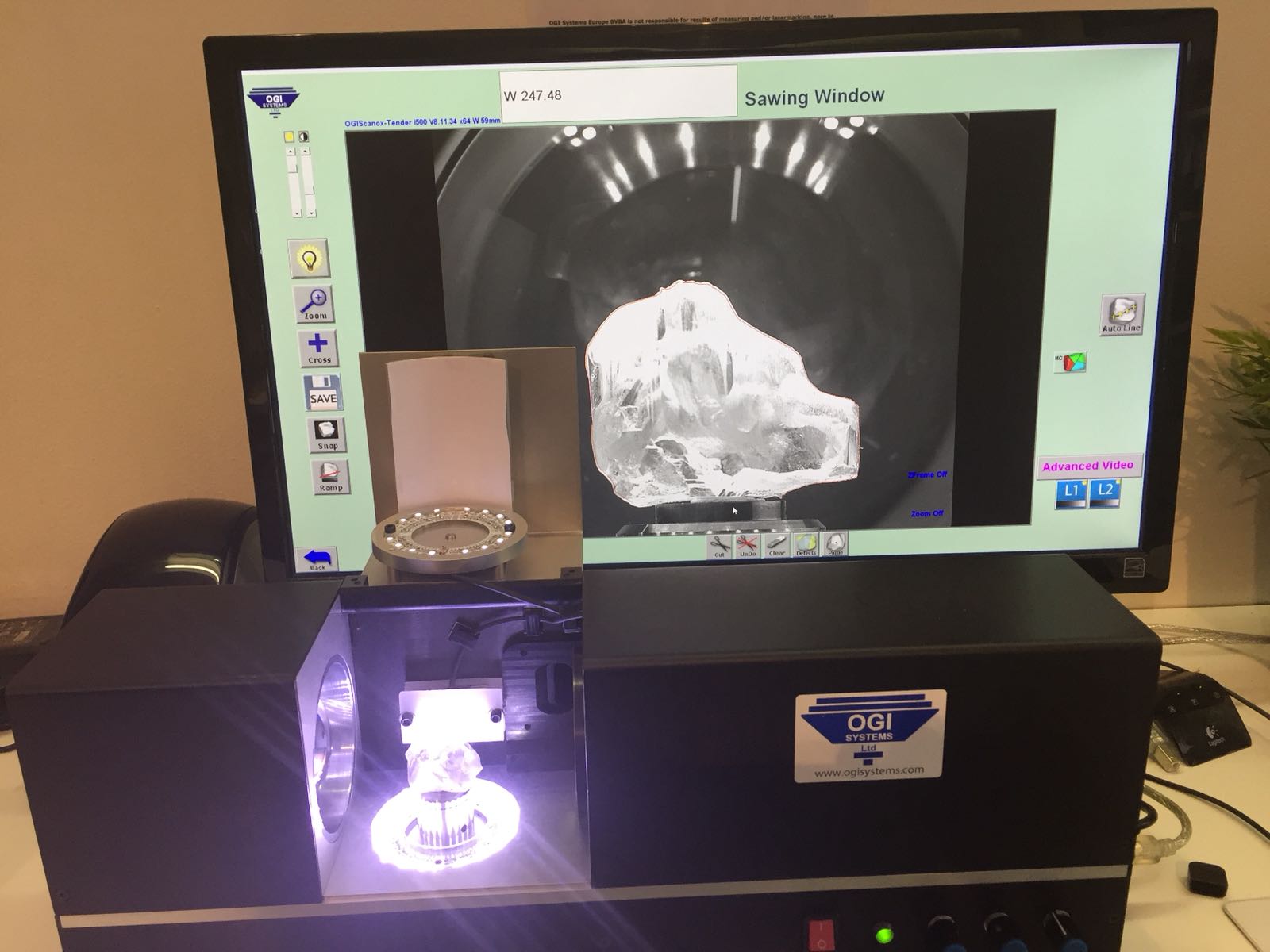

    Tender i500


    Real Video

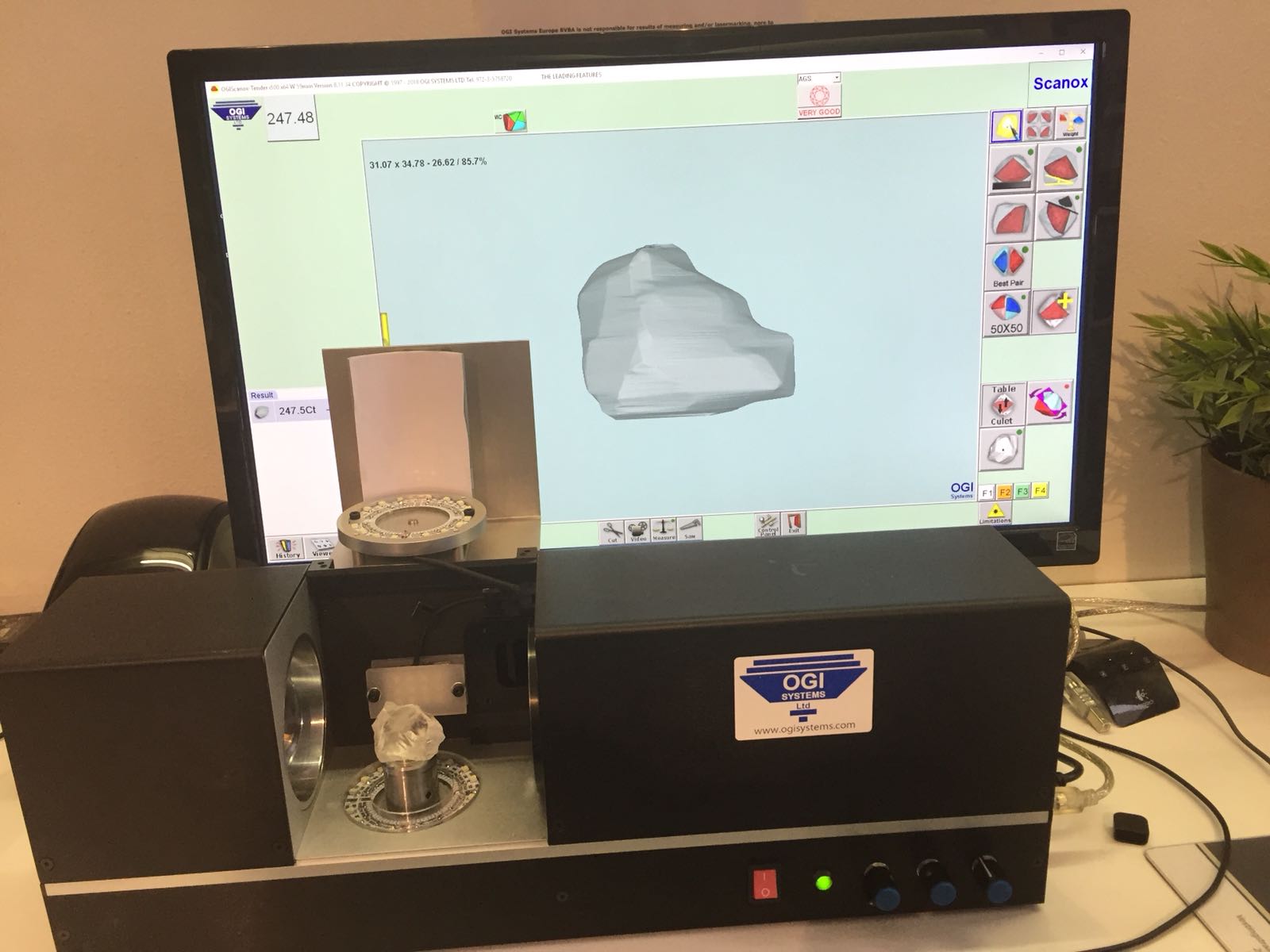

    Analyzing


    247.48 Carat



    Back to Top

    HIGHLIGHTS

    HD Colored Camera
    HD digital camera for accurate mapping of the rough surface and identification of the smallest inclusions.
    Portable System
    Light weight of only 1.1kg, can be taken anywhere and connected to laptops.
    Inclusion
    Revolutionary inclusion feature enables calculating positions and grading clarity as viewed by the user.
    Rough Price
    Automatically calculates the rough price according to Rapaport list.

    Multi-Cut
    Allocates and calculates unlimited cutting options in round and fancy shapes for the highest possible yield.
    64Bit
    Ultrafast capacity for measuring and planning diamonds.
    Laser Scanner
    Precise laser scanner for optimal mapping of holes and grooves. Cushion and Emerald.
    Best Value
    Advanced algorithms automatically analyses different cut grades, shapes, clarity grades and inclusion positions for maximum profit.
    Back to Top
    SOFTWARE
    Split
    Clean Stone
    Fire Pique
    Gletz
    Hole
    Multi-Plan
    Multi-Shape
    Multi-Saw
    Multi-Stone
    Pique Inside
    Pique Inclusion
    Princess
    Fire Results

    Split two twins stones

    The best result without inclusion

    Inclusion effect simulate on polish stone

    Plotting glez simulate on rough stone

    Plotting whole simulate on rough stone

    Analyze multiple shape and gives the best value

    Maximize polished pcs in one stone with different shape

    Optimize multi pieces to get maximum use

    Analyze multi stone same shape

    Analyze the best weight with inclusion after plotting

    Inclusion reflects visible

    Best planning for princess shape

    Predict analyzing of the light performance
























































































    Related products:

    DiaColor V1.1

    Rough Diamond Grading Color Machine

    Scanox Proportion - High Resolution Diamond Grading

    * 1 YEAR WARRANTY.
