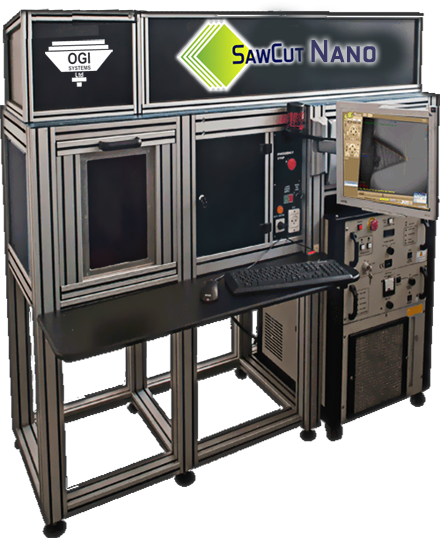

SawCut Nano

High-Speed Parallel Cutting System

SAWCut Nano is a laser diamond sawing system designed for maximum efficiency in the diamond sawing process.

This system's latest solution offers a unique parallel cutting system that guarantees lower diamond weight loss.

HIGHLIGHTS

Parallel Cutting
Parallel cutting technology to minimize weight loss during sawing process to around 1%

High-Speed Laser
y-axis parallel cutting method allows for highest cutting speeds with the most effective results

Green Laser
State of-the-art 100W high power Green Diode YAG laser provides a very safe sawing process as well as smooth, clear surface and minimal weight loss.

Mass Production
Sawing is done in mass production, 24/7, quickly and accurately.

Single-Side Cassettes
Single-side sawing available for minimizing the need for further polishing the surface after sawing, and receiving smooth sawing surface.

User Friendly
User-friendly and reliable, easy to operate and requires low maintenance

Polaris Software
A specially designed program is included for safely sawing Polaris diamonds.

Transferred Data
Advanced features allow stones' shaping and marking information transferred from any OGI Rough Laser Marking machine to the Sawcut machine for minimizing human errors.

MY SAWCUT

TECH SPEC

WEIGHT: 420 kg

VOLTAGE: 220V

AUTO SWITCHING

WAVE LENGTH: 532 nM

Dimensions: W: 85cm X L: 180cm X H: 160cm

For Laser Parameters Read more.

For Automation and Mechanical Parameters Read More.

Laser:
Thicknesses of 0.1 to 40mm and more may be processed. Waste is only 1 to 2 % depending on the size and the shape of the diamond.

Laser Parameters:

Laser type:	Pumped by Diode
Wave length (nM):	532
Type ND:	YAG
Transverse Mode:	TEM00
Average Power @5Khz (W):	15
Pulse to pulse stability (%rms):	2%
Pulse with, nominal (ns):	90
Beam Diameter, nominal (mm):	1
Polarization:	Linear
Beam quality (M2):	1, 2
Electrical Power:	220 ac, 1-phase, 50/60Hz, 16

Laser Resonator:

Laser medium Nd: YAG crystal

This laser unit has been developed for its specific use in the diamond industry

Long pulse configuration, Constant peak power configuration at set frequencies

100W powerful and stable

TEM00 mode, Higher beam quality and stability

Automation and Mechanical Parameters:

Swing axe, the angle can move +/- 110 degree Optimize XY motion table for best performance

Rotating axe, 360 degree

Linear motor technology with performance matched mechanical elements to provide high acceleration, high velocity, and quick settling with accurate highly repeatable positioning

High Strength Aluminum Body

Square Rail Linear Bearing

High Efficiency Ballscrew Drive

Square Rail Linear Bearing

High Efficiency Ballscrew Drive

Square Rail Linear Bearing

Additional options:

Applications Wizard Software

Embedded software for bruting and shaping includes shape editor for creating, customizing and importing your own shapes and models.
